Single Cells
The company supply ES-type (Electrolyte-Supported) single cells adopting Ni-YSZ as fuel electrode, YSZ as electrolyte, and LSM or LSCF as air electrode, compatible with 3Y to 8Y electrolyte systems.
Parameter | Value |
Electrolyte Material | 3YSZ~8YSZ |
Electrolyte Thickness | 60μm、80μm |
Fuel Electrode | Ni-YSZ / Ni-GDC |
Air Electrode | LSM-YSZ / LSCF-GDC |
Cell Dimension | Ø10~120 mm；50×50~150×150 mm2 （Customizable） |

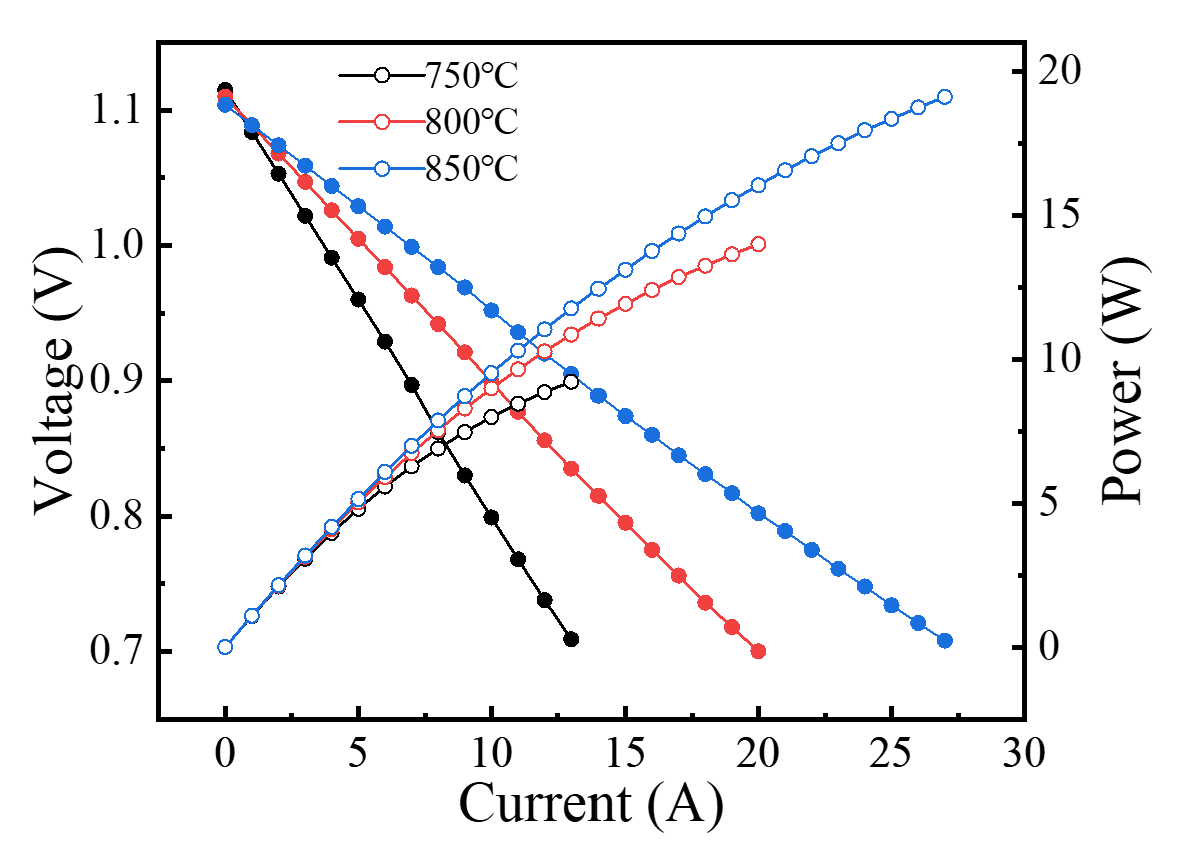

Open Circuit Voltage | ~1.15V |
Power Density (850℃, H2 ) | 0.22~0.24W/cm2@0.7V |
